Engineering Information
| Drivers | LF:1×12″ Voice-coil:2.5” HF:1×1″Voice-coil:1.33″ |
| Frequency Response(+/-10dB) | 65-18000Hz |
| Dispersion(-6dB) | 90°×50° |
| Sensitivity(1m/1W) | 97 dB |
| maximum SPL | 123dB continuous/129dB peak |
| Nominallmpedance | 8 Ohm |
| Rated Power | 350W AES 1400W peak |
| Recommended AMP | 700W/8 Ohms |
| Crossover Frequency | 2100Hz |
| Connectors | 2 × Speakon NL4MP |
| Dimensions(H×W×D) | 560mm×(363,229)mm×389mm |
| Packing Dimensions(H×W×D) | 632×488×462mm |
| Net Weight（KG） | 18.5 |
| Gross Weight (KG) | 20.6 |
Construction
| Physical | Trapezoid |
| Enclosure Material | Birch plywood |
| Enclosure shell Material | Molded steel circular hole mesh surface with black sponge inside |
| Finish | Purple eco-friendly water-based wear-resistant paint coating |
| Handing Position | 17 positions for installing M8 screws |
| Pole Mount | 35mm support seat at the bottom |
| Caster | / |
Function Application
| Applications | Auditorium, meeting room, music bar, DISCO bar, KTV room |

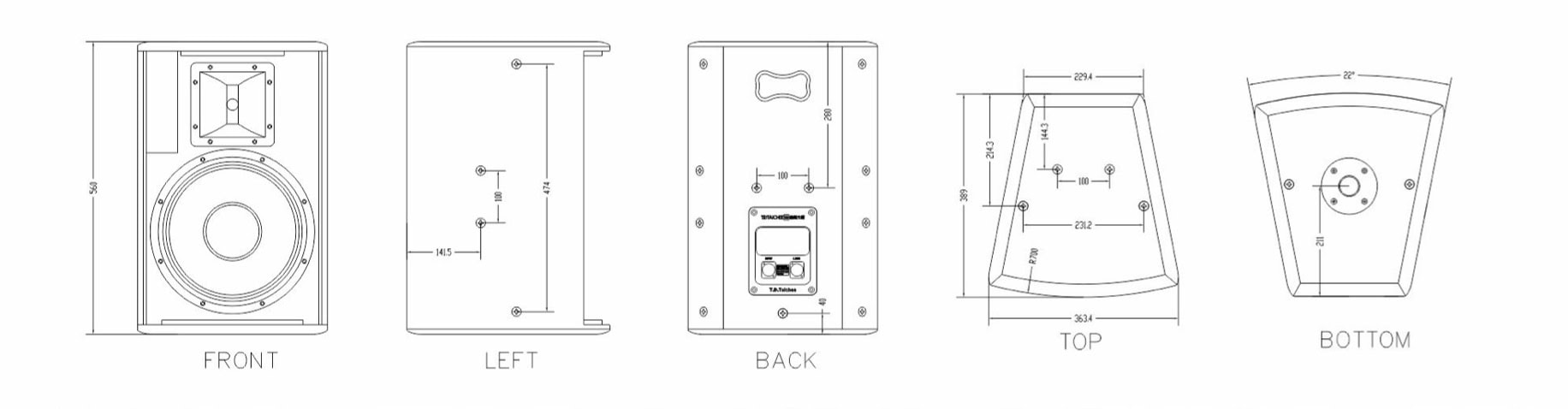

Construction Drawing
Customization
| Color Customization | We support color customization, creating an exclusive visual style according to the user’s venue or personal preferences. |
| Appearance Materials Customization | Through personalized customization of appearance materials, a unique visual style can be created. |
| Customization of Venue Sound | Offer customization of the sound for different venues, precisely matching the acoustic requirements of various spaces. |
| OEM | We empower the entire process from product design to manufacturing to meet diverse cooperation needs. |
