Engineering Information
| Drivers | LF:1×15″ Voice-coil:2.5″ HF:1×1 .4″ Voice-coil:3″ |
| Frequency Response(+/-10dB) | 55-18000Hz |
| Dispersion(-6dB) | 90°x40° |
| Sensitivity(1m/1W) | 99 dB |
| maximum SPL | 125dB continuous/131dB peak |
| Nominallmpedance | 8 Ohm |
| Rated Power | 475W AES 1900W peak |
| Recommended AMP | 800W/8 Ohms |
| Crossover Frequency | 1500Hz |
| Connectors | 2 x Speakon NL4MP |
| Dimensions(HxWxD) | 684mm×442mm×430mm |
| Packing Dimensions(H×W×D) | 762x589x541mm |
| Net Weight（KG） | 25.8 |
| Gross Weight (KG) | 29 |
Construction
| Physical | Trapezoid |
| Enclosure Material | Birch plywood |
| Enclosure shell Material | Molded steel circular mesh surface, with black sponge added on the outside |
| Finish | Purple eco-friendly water-based wear-resistant paint coating |
| Handing Position | 11 pcs M10 screw lifting hole positions |
| Pole Mount | 35mm support seat at the bottom |
| Caster |
Function Application
| Applications | Auditorium, meeting room, music bar, DISCO bar, KTV room, etc. |

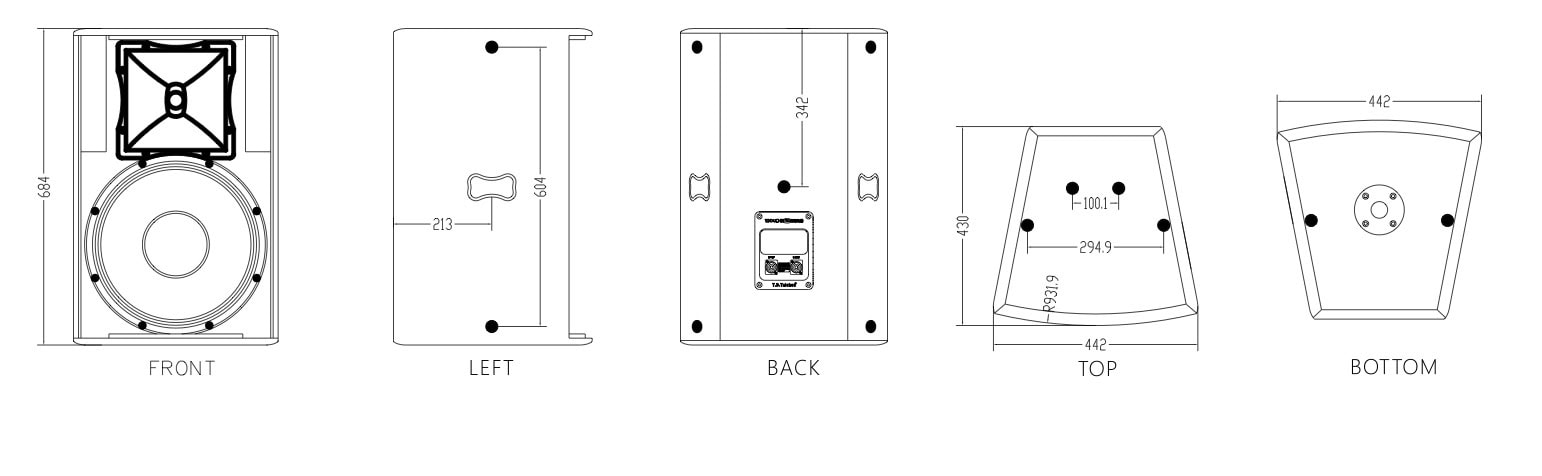

Construction Drawing
Customization
| Color Customization | We support color customization, creating an exclusive visual style according to the user’s venue or personal preferences. |
| Appearance Materials Customization | Through personalized customization of appearance materials, a unique visual style can be created. |
| Customization of Venue Sound | Offer customization of the sound for different venues, precisely matching the acoustic requirements of various spaces. |
| OEM | We empower the entire process from product design to manufacturing to meet diverse cooperation needs. |
