Engineering Information
| Drivers | LF:1×12″ Voice-coil:2.5″ HF:1×1″ Voice-coil:1.73″ |
| Frequency Response(+/-10dB) | 50-18000Hz |
| Dispersion(-6dB) | 70°x100° |
| Sensitivity(1m/1W) | 101 dB |
| maximum SPL | 127dB continuous/133dB peak |
| Nominal Impedance | / |
| Rated Power | 400W AES 1600W peak |
| Recommended AMP | 800W/8 Ohms |
| Crossover Frequency | 2000Hz |
| Connectors | 1×Speakon NL4MP |
| Dimensions(HxWxD) | 592mm×381mm×404mm |
| Packing Dimensions(H×W×D) | 664x1069x479mm (2pcs inside） |
| Net Weight（KG） | 20 |
| Gross Weight (KG) | 46 (2pcs inside） |
Construction
| Physical | Trapezoid |
| Enclosure Material | Birch plywood/ MDF Board |
| Enclosure shell Material | Molded steel hexagonal mesh with black sponge inside |
| Finish | Black environmentally friendly water-based wear-resistant paint coating (color can be customized according to customer requirements) |
| Handing Position | 19pcs M8 screw lifting hole positions |
| Pole Mount | |
| Caster |
Function Application
| Applications | Auditorium, conference room, music bar, DISCO bar, KTV room, etc. |

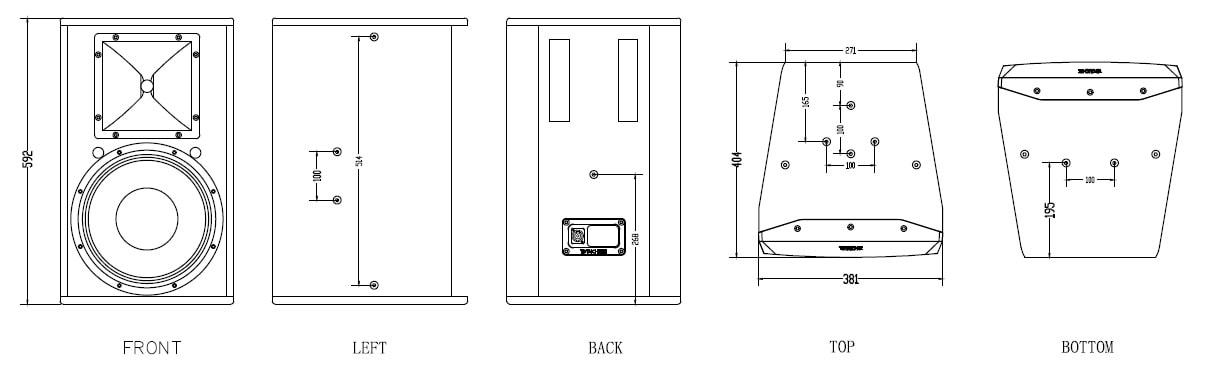

Construction Drawing
Customization
| Color Customization | We support color customization, creating an exclusive visual style according to the user’s venue or personal preferences. |
| Appearance Materials Customization | Through personalized customization of appearance materials, a unique visual style can be created. |
| Customization of Venue Sound | Offer customization of the sound for different venues, precisely matching the acoustic requirements of various spaces. |
| OEM | We empower the entire process from product design to manufacturing to meet diverse cooperation needs. |
