Engineering Information
| Drivers | LF:1×15″ Voice-coil:3″ HF:1×1 ” Voice-coil:1.73″ |
| Frequency Response(+/-10dB) | 52-18000Hz |
| Dispersion(-6dB) | 100° x70° |
| Sensitivity(1m/1W) | 98.6 dB |
| maximum SPL | 126dB continuous/132 dB peak |
| Nominallmpedance | 8 Ohm |
| Rated Power | 560W AES 2240W peak |
| Recommended AMP | 1000W/8 Ohms |
| Crossover Frequency | 1800Hz |
| Connectors | 2 x Speakon NL4MP |
| Dimensions(HxWxD) | 684mm×442mm×460mm |
| Packing Dimensions(H×W×D) | 762x589x541mm |
| Net Weight（KG） | 25.8 |
| Gross Weight (KG) | 29.2 |
Construction
| Physical | Trapezoid |
| Enclosure Material | Birch plywood |
| Enclosure shell Material | Molded steel hexagonal mesh with black sponge inside |
| Finish | Black environmentally friendly water-based wear-resistant paint coating (color can be customized according to customer requirements) |
| Handing Position | 11pcs M10 screw lifting hole positions |
| Pole Mount | 35mm support seat at the bottom |
| Caster |
Function Application
| Applications | Auditorium, conference room, music bar, KTV room, etc. |

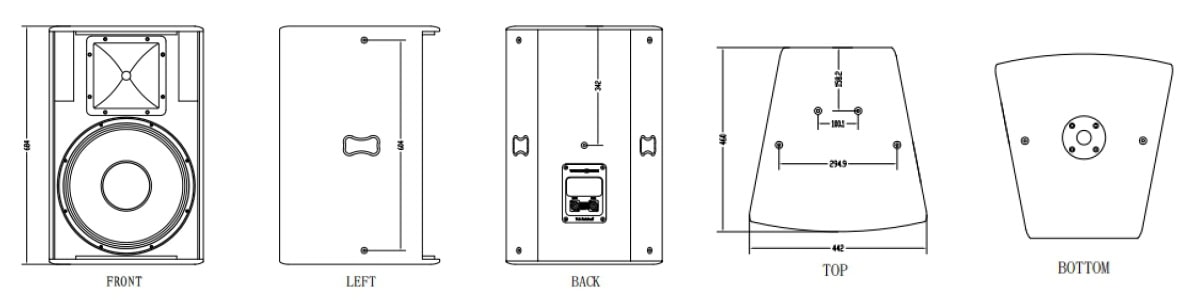

Construction Drawing
Customization
| Color Customization | We support color customization, creating an exclusive visual style according to the user’s venue or personal preferences. |
| Appearance Materials Customization | Through personalized customization of appearance materials, a unique visual style can be created. |
| Customization of Venue Sound | Offer customization of the sound for different venues, precisely matching the acoustic requirements of various spaces. |
| OEM | We empower the entire process from product design to manufacturing to meet diverse cooperation needs. |
