Engineering Information
| Drivers | LF·1 x 8″ Voice-coil:2″ HF·1 x 1″ Voice-coil:1″ |
| Frequency Response(+/-10dB) | 70-1 8000Hz |
| Dispersion(-6dB) | 90 ° x 50 ° |
| Sensitivity(1m/1W) | 84dB |
| maximum SPL | 107dB continuous/113dB peak |
| Nominal Impedance | 8 Ohms |
| Rated Power | 180W AES 720W peak |
| Recommended AMP | 350W/8 Ohms |
| Crossover Frequency | 2500Hz |
| Connectors | 2×Speakon NL4MP |
| Dimensions(HxWxD) | 404mm x 265mm x 312mm |
| Packing Dimensions(H×W×D) | 459 x645x391mm (2pcs inside） |
| Net Weight（KG） | 9.8 |
| Gross Weight (KG) | 20.3(2pcs inside） |
Construction
| Physical | Trapezoid |
| Enclosure Material | Birch plywood |
| Enclosure shell Material | Molded steel hexagonal mesh with black sponge inside |
| Finish | Black environmentally friendly water-based wear-resistant paint coating (color can be customized according to customer requirements) |
| Handing Position | 7pcs M8 screw lifting hole positions |
| Pole Mount | 35mm support seat at the bottom |
| Caster |
Function Application
| Applications | Auditorium, conference room, music bar, DISCO bar, KTV room, etc. |

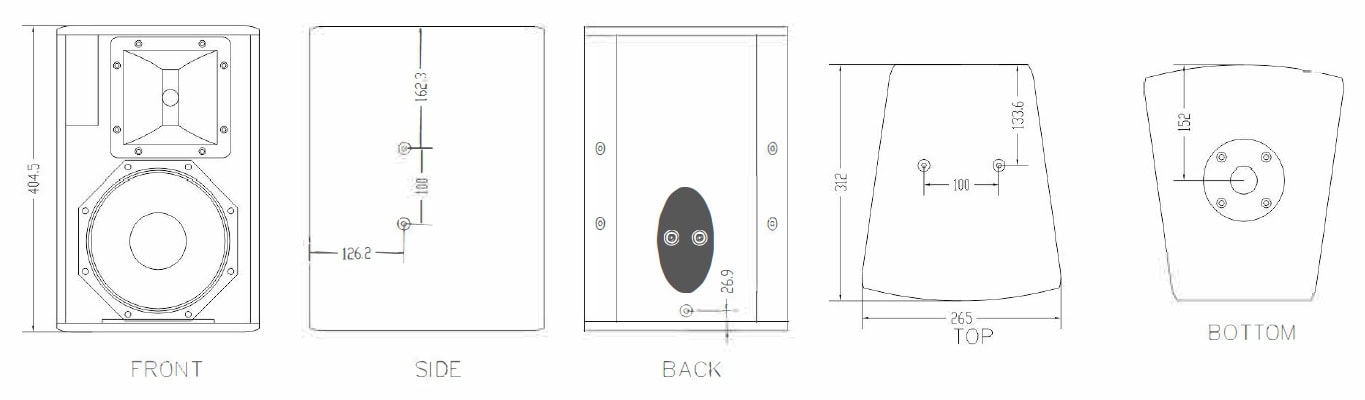

Construction Drawing
Customization
| Color Customization | We support color customization, creating an exclusive visual style according to the user’s venue or personal preferences. |
| Appearance Materials Customization | Through personalized customization of appearance materials, a unique visual style can be created. |
| Customization of Venue Sound | Offer customization of the sound for different venues, precisely matching the acoustic requirements of various spaces. |
| OEM | We empower the entire process from product design to manufacturing to meet diverse cooperation needs. |
