Engineering Information
| Drivers | LF:1×15″ Voice-coil:3″ HF:1×1 .4″ Voice-coil:3″ |
| Frequency Response(+/-10dB) | 42-18000Hz |
| Dispersion(-6dB) | 30°×110° |
| Sensitivity(1m/1W) | 106dB |
| maximum SPL | 136dB continuous/142dB peak |
| Nominallmpedance | 8 Ohm |
| Rated Power | 910W AES 3640W peak |
| Recommended AMP | 2000W/8 Ohms |
| Crossover Frequency | 1000Hz |
| Connectors | 2×Speakon NL4MP |
| Dimensions(HxWxD) | 756mm×436mm×497mm |
| Packing Dimensions(H×W×D) | 828x596x539mm |
| Net Weight（KG） | 36.4 |
| Gross Weight (KG) | 40 |
Construction
| Physical | Trapezoid |
| Enclosure Material | Birch plywood panel |
| Enclosure shell Material | Molded steel circular mesh surface, with black sponge added on the outside |
| Finish | Purple eco-friendly water-based wear-resistant paint coating |
| Handing Position | 10pcs M10 screw mounting holes |
| Pole Mount | / |
| Caster | / |
Function Application
| Applications | Auditorium, meeting room, music bar, DISCO bar, KTV room |

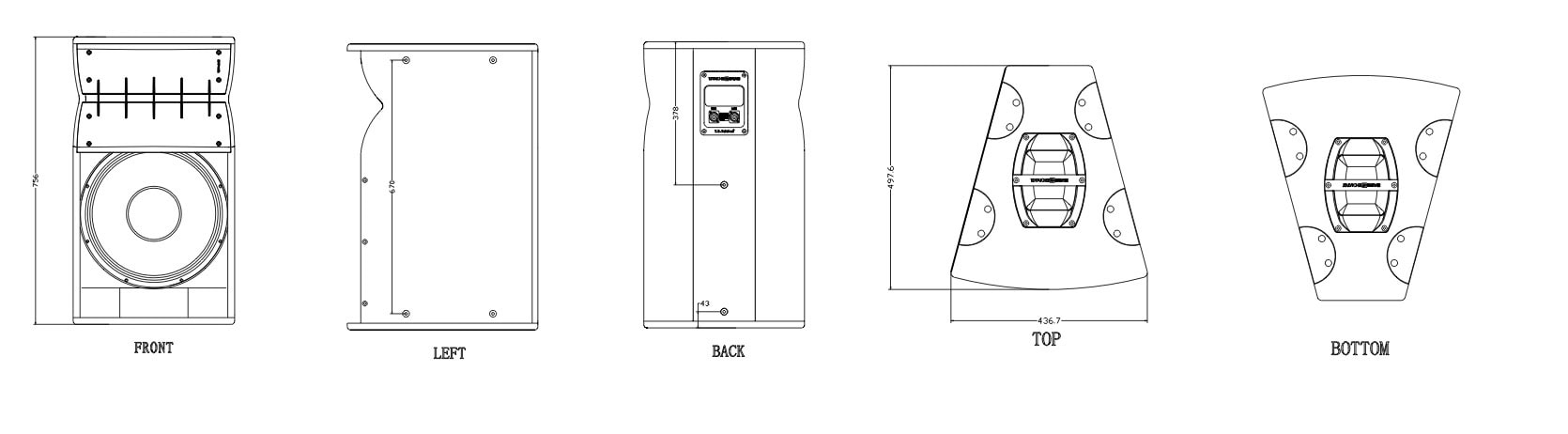

Construction Drawing
Customization
| Color Customization | We support color customization, creating an exclusive visual style according to the user’s venue or personal preferences. |
| Appearance Materials Customization | Through personalized customization of appearance materials, a unique visual style can be created. |
| Customization of Venue Sound | Offer customization of the sound for different venues, precisely matching the acoustic requirements of various spaces. |
| OEM | We empower the entire process from product design to manufacturing to meet diverse cooperation needs. |
