Engineering Information
| Drivers | LF:2×10″ Voice-coil:3″ HF:2×1″ Voice-coil: 1.33″ |
| Frequency Response(+/-10dB) | 70-18000Hz |
| Dispersion(-6dB) | H:70°×V:100° |
| Sensitivity(1m/1W) | 98dB |
| Maximum SPL | 126dB continuous/132dB peak |
| Nominal Impedance | 16 Ohms |
| Rated Power | 660W AES 2640W peak |
| Recommended AMP | 1200W/16 Ohms |
| Crossover Frequency | 2000Hz |
| Connectors | 2xSpeakon NL4MP |
| Dimensions(HxWxD) | 302mmx790mmx352mm |
| Packing Dimensions(H×W×D) | 424x882x405mm |
| Net Weight | 28Kg |
| Gross Weight | 32.5Kg |
Construction
| Physical | Trapezoid |
| Enclosure Material | Birch plywood |
| Enclosure shell Material | Molded steel hexagonal mesh with black sponge inside |
| Finish | Black environmentally friendly water-based wear-resistant paint coating (color can be customized according to customer requirements) |
| Handing Position | 15 M8 screw lifting hole positions |
| Pole Mount | 35mm support seat at the bottom |
| Caster |
Function Application
| Applications | Auditorium, conference room, music bar, KTV room |

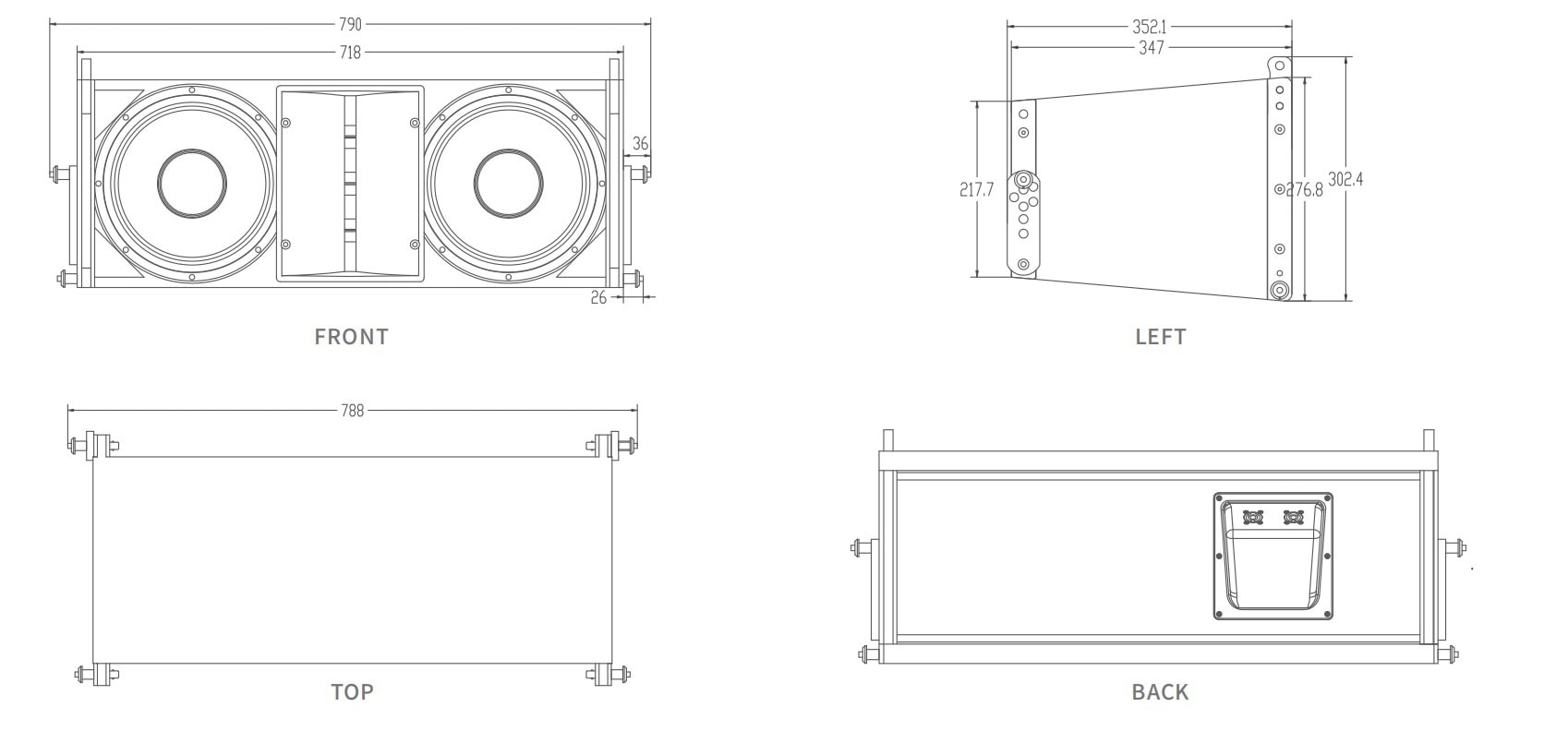

Construction Drawing
Customization
| Color Customization | We support color customization, creating an exclusive visual style according to the user’s venue or personal preferences. |
| Appearance Materials Customization | Through personalized customization of appearance materials, a unique visual style can be created. |
| Customization of Venue Sound | Offer customization of the sound for different venues, precisely matching the acoustic requirements of various spaces. |
| OEM | We empower the entire process from product design to manufacturing to meet diverse cooperation needs. |
