Engineering Information
| Drivers | LF:1X10″ Voice-coil:2.5″ HF:2×1″ Voice-coil:1.33″ |
| Frequency Response(+/-10dB) | 80-18000Hz |
| Dispersion(-6dB) | H: 120°x V:10° |
| Sensitivity(1m/1W) | LF:83dB HF: 91dB |
| Maximum SPL | 111dB continuous/117dB peak |
| Nominal Impedance | LF:16 Ohms HF:16 Ohms |
| Rated Power | LF:300W AES 1200W peak HF:60W AES 240W peak |
| Recommended AMP | LF:1000W/8 Ohms HF:500W/8Ohms |
| Crossover Frequency | 2000Hz |
| Connectors | 2×Speakon NL4MP |
| Dimensions(HxWxD) | 302(277)mm×570(500)mm×352(347)mm |
| Packing Dimensions(H×W×D) | 424x664x405mm |
| Net Weight | 16.4Kg |
| Gross Weight | 18.5Kg |
Construction
| Physical | Trapezoid |
| Enclosure Material | Birch plywood |
| Enclosure shell Material | Molded steel hexagonal perforated mesh surface with black sponge inside |
| Finish | Black polyurea paint |
| Handing Position | Professional hanging system |
| Pole Mount | / |
| Caster | / |
Function Application
| Applications | Mobile performances, sports venues, theaters, multi-functional halls |

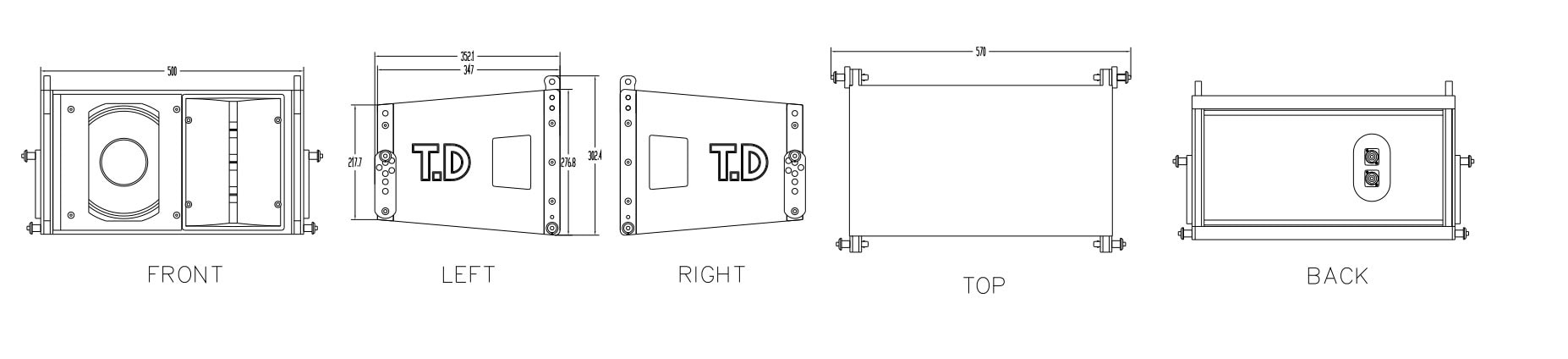

Construction Drawing
Customization
| Color Customization | We support color customization, creating an exclusive visual style according to the user’s venue or personal preferences. |
| Appearance Materials Customization | Through personalized customization of appearance materials, a unique visual style can be created. |
| Customization of Venue Sound | Offer customization of the sound for different venues, precisely matching the acoustic requirements of various spaces. |
| OEM | We empower the entire process from product design to manufacturing to meet diverse cooperation needs. |
