Engineering Information
| Drivers | LF:2×12″ Voice-coil:3″ MF:4X6.5″ Voice-coil:1.73″ HF:2×1″ Voice-coil: 2″ |
| Frequency Response(+/-10dB) | 40-18000Hz |
| Dispersion(-6dB) | H:120°xV:8° |
| Sensitivity(1m/1W) | LF:105dB MF:110dB HF:112dB |
| Maximum SPL | 134dB continuous 140dB peak |
| Nominal Impedance | LF:2×8 Ohms MF:8 Ohms HF:16 Ohms |
| Rated Power | LF:2x500W AES 2x2000W peak MF:4x150W AES 4x600W peak HF: 2x70W AES 2x280W peak |
| Recommended AMP | LF:1300W/8Ohms MF:1000W/8 Ohms HF:500W/8 Ohms |
| Crossover Frequency | 300Hz/1500Hz |
| Connectors | 2×parallel NL8MP |
| Dimensions(HxWxD) | (367.290)mm×964mm×555mm |
| Packing Dimensions(H×W×D) | 453mm×1123mm×656mm |
| Net Weight | 55Kg |
| Gross Weight | 64Kg |
Construction
| Physical | Trapezoid |
| Enclosure Material | Birch plywood |
| Enclosure shell Material | Molded steel hexagonal perforated mesh surface with black sponge inside |
| Finish | Black environmentally friendly water-based wear-resistant paint coating |
| Handing Position | Professional hanging system |
| Pole Mount | |
| Caster | Transport vehicle |
Function Application
| Applications | Mobile performances, sports venues, theaters |

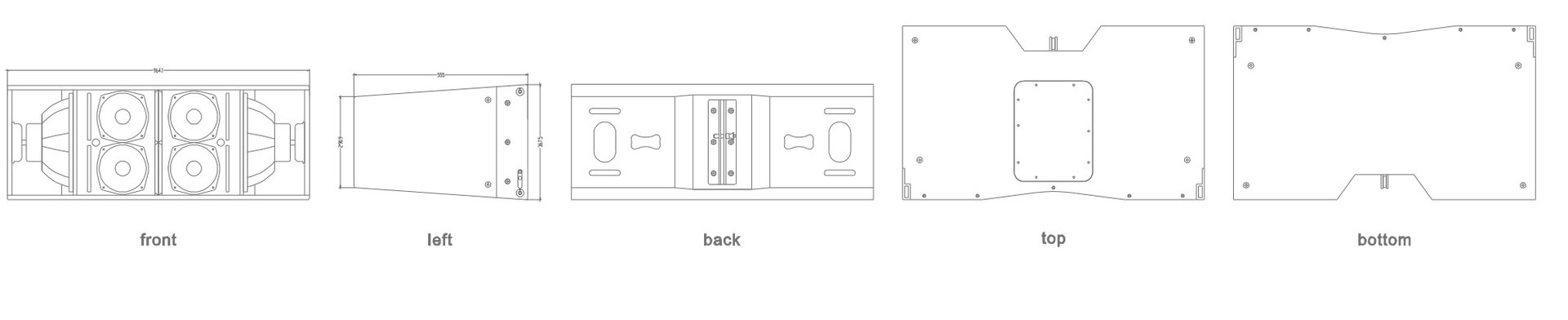

Construction Drawing
Customization
| Color Customization | We support color customization, creating an exclusive visual style according to the user’s venue or personal preferences. |
| Appearance Materials Customization | Through personalized customization of appearance materials, a unique visual style can be created. |
| Customization of Venue Sound | Offer customization of the sound for different venues, precisely matching the acoustic requirements of various spaces. |
| OEM | We empower the entire process from product design to manufacturing to meet diverse cooperation needs. |
