Engineering Information
| Drivers | LF:2×12″ Voice-coil:3″MF:4X6.5″ Voice-coil:1.5″ HF:2×1″ Voice-coil:2″ |
| Frequency Response(+/-10dB) | 35-18000Hz |
| Dispersion(-6dB) | H: 110°x V: 10° |
| Sensitivity(1m/1W) | LF:89dB MF:97dB HF: 105dB |
| Maximum SPL | 129dB continuous/135dB peak |
| Nominal Impedance | LF1: 8 Ohms LF2: 8 Ohms MF:8 Ohms HF:16 Ohms |
| Rated Power | LF1:700W AES 2800W peak LF2:700W AES 2800W peak MF:600W AES 2400W peak HF:140W AES 560W peak |
| Recommended AMP | LF:1500W/8 Ohms MF:1200W/8 Ohms HF:500W/8 Ohms |
| Crossover Frequency | 250Hz/1000Hz |
| Connectors | 2x parallel NL8MP |
| Dimensions(HxWxD) | 400mm×1167mm×560mm |
| Packing Dimensions(H×W×D) | 471x1267x656mm |
| Net Weight | 63Kg |
| Gross Weight | 73.5Kg |
Construction
| Physical | Trapezoid |
| Enclosure Material | Birch plywood |
| Enclosure shell Material | Molded steel hexagonal perforated mesh surface with black sponge inside |
| Finish | Black polyurea paint |

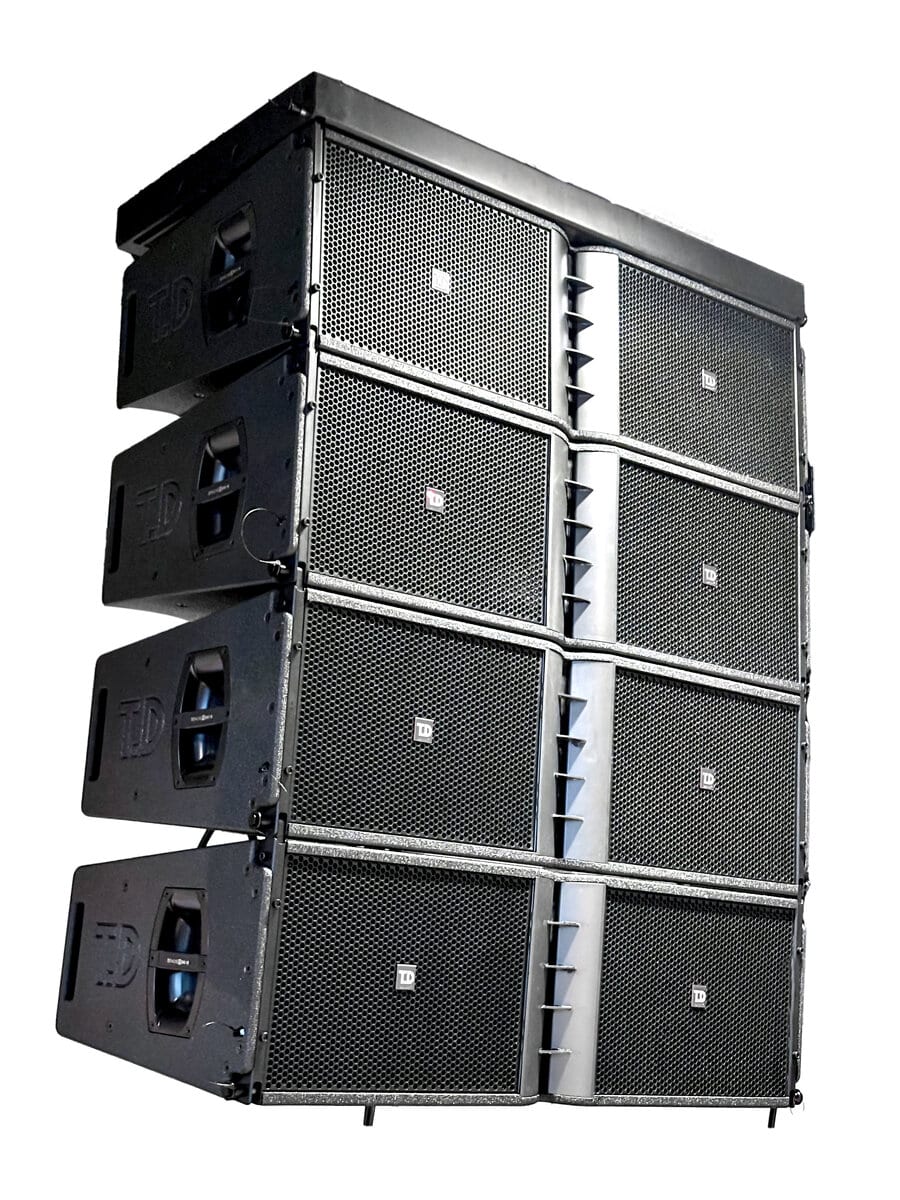

| Handing Position | Professional hanging system |
| Pole Mount | / |
| Caster | Transport vehicle |
Function Application
| Applications | Mobile performances, sports venues, theaters |

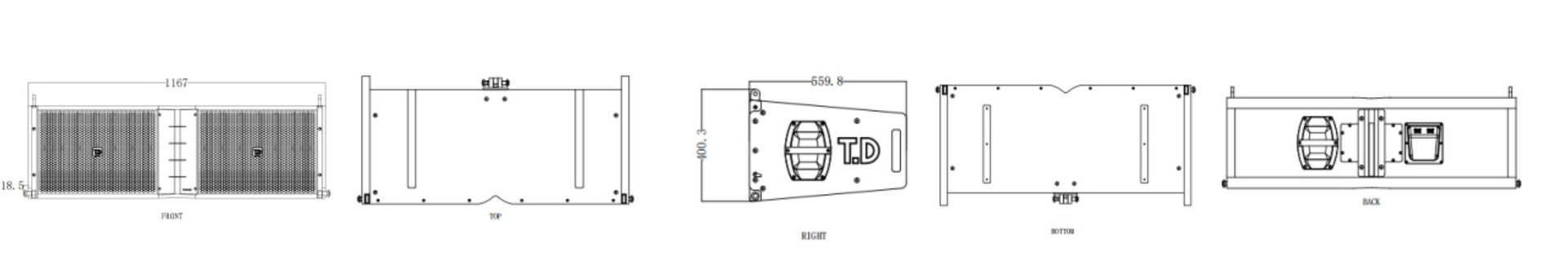

Construction Drawing
Customization
| Color Customization | We support color customization, creating an exclusive visual style according to the user’s venue or personal preferences. |
| Appearance Materials Customization | Through personalized customization of appearance materials, a unique visual style can be created. |
| Customization of Venue Sound | Offer customization of the sound for different venues, precisely matching the acoustic requirements of various spaces. |
| OEM | We empower the entire process from product design to manufacturing to meet diverse cooperation needs. |
