Engineering Information
| Drivers | LF:2X5″ Voice-coil:1.39 ” HF:2×1″ Voice-coil: 1″ |
| Frequency Response(+/-10dB) | 85-18000Hz |
| Dispersion(-6dB) | H: 90°x V:8° |
| Sensitivity(1m/1W) | 100 dB |
| Maximum SPL | 123dB continuous/129dB peak |
| Nominal Impedance | 16 Ohms |
| Rated Power | 240W AES 960W peak |
| Crossover Frequency | 2500Hz |
| Connectors | 2×Speakon NL4MP |
| Dimensions(HxWxD) | 312mm×324mm×249mm |
| Packing Dimensions(H×W×D) | Equipped with an aviation case 700mm×1025mm×660mm |
| Net Weight | 11.2Kg |
| Gross Weight | Aviation cases and accessories: 87.4Kg |
Construction
| Physical | Trapezoid |
| Enclosure Material | Birch plywood |
| Enclosure shell Material | Molded steel hexagonal mesh surface with black sponge |
| Finish | Black polyurea paint |
| Handing Position | Professional hanging system |
| Pole Mount | Bottom |
| Caster |
Function Application
| Applications | Mobile performances, sports venues, theaters, multi-functional halls |

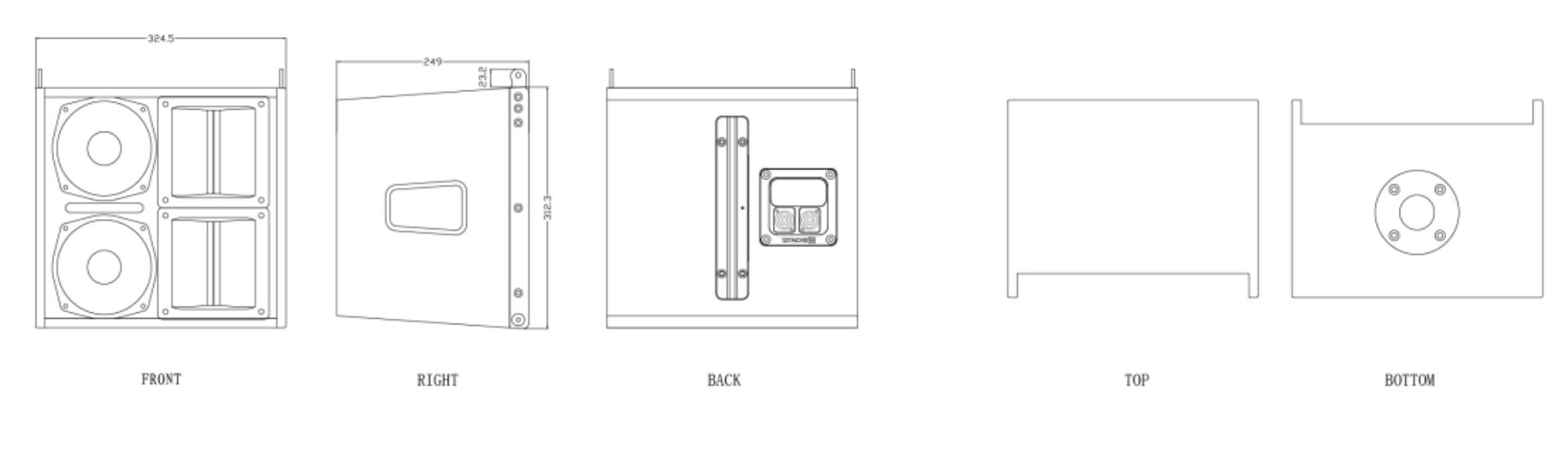

Construction Drawing
Customization
| Color Customization | We support color customization, creating an exclusive visual style according to the user’s venue or personal preferences. |
| Appearance Materials Customization | Through personalized customization of appearance materials, a unique visual style can be created. |
| Customization of Venue Sound | Offer customization of the sound for different venues, precisely matching the acoustic requirements of various spaces. |
| OEM | We empower the entire process from product design to manufacturing to meet diverse cooperation needs. |
