Engineering Information
| Drivers | LF:2×10″ Voice-coil:2.5″ HF:1×1.4″ Voice-coil: 4″ |
| Frequency Response(+/-10dB) | 57-18000Hz |
| Dispersion(-6dB) | H:90°×V:8° |
| Sensitivity(1m/1W) | LF:92dB HF: 106dB |
| Maximum SPL | 127dB continuous/133dB peak |
| Nominal Impedance |
LF:8 Ohms HF:16 Ohms |
| Rated Power |
LF :700W AES 2800W peak HF:120W AES 480W peak |
| Recommended AMP |
LF:1400W/8 Ohms HF:500W/8 Ohms |
| Crossover Frequency | 950Hz |
| Connectors | 2×Speakon NL4MP |
| Dimensions(HxWxD) | 312mmx774mmx461mm |
| Packing Dimensions(H×W×D) | 419x873x563mm |
| Net Weight | 29Kg |
| Gross Weight | 33Kg |
Construction
| Physical | Trapezoid |
| Enclosure Material | Birch plywood |
| Enclosure shell Material | Molded steel hexagonal mesh with black sponge inside |
| Finish |
Polyurea black paint coating |
| Handing Position |
Professional hanging system |
| Caster |
Transport box |
|
Hanging Bracket |
TB-10C |
Function Application
| Applications | Auditorium, conference room, music bar, KTV room |

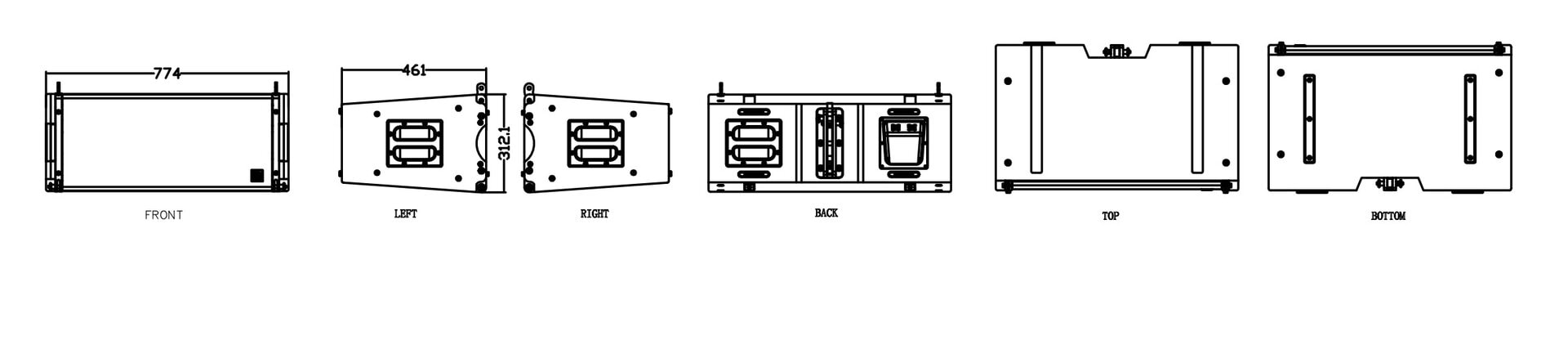

Construction Drawing
Customization
| Color Customization | We support color customization, creating an exclusive visual style according to the user’s venue or personal preferences. |
| Appearance Materials Customization | Through personalized customization of appearance materials, a unique visual style can be created. |
| Customization of Venue Sound | Offer customization of the sound for different venues, precisely matching the acoustic requirements of various spaces. |
| OEM | We empower the entire process from product design to manufacturing to meet diverse cooperation needs. |
