Engineering Information
| Drivers | LF:1×15″ Voice-coil:4″ |
| Frequency Response(+/-10dB) | 40-150Hz |
| Dispersion(-6dB) | |
| Sensitivity(1m/1W) | 96 dB |
| maximum SPL | 122dB continuous/128dB peak |
| Nominallmpedance | 8 Ohm |
| Rated Power | 500W AES 2000W peak |
| Recommended AMP | 1000W/8 Ohms |
| Crossover Frequency | 100Hz |
| Connectors | AC220V power input |
| Dimensions(HxWxD) | 526mm×507mm×700mm |
| Packing Dimensions(H×W×D) | |
| Net Weight（KG） | 40 |
| Gross Weight (KG) |
Construction
| Physical | Rectangle |
| Enclosure Material | Birch plywood |
| Enclosure shell Material | Molded steel hexagonal mesh with black sponge inside |
| Finish | Black Polyurea Paint |
| Handing Position | Professional suspension system |
| Pole Mount | Upper apex |
| Caster |
Function Application
| Applications | Auditorium, conference room, music bar, KTV room, etc. |

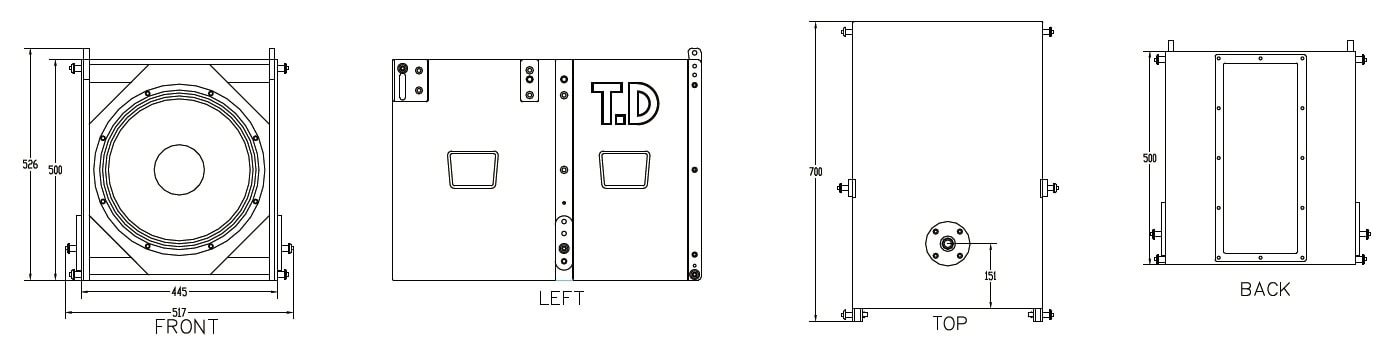

Construction Drawing
Customization
| Color Customization | We support color customization, creating an exclusive visual style according to the user’s venue or personal preferences. |
| Appearance Materials Customization | Through personalized customization of appearance materials, a unique visual style can be created. |
| Customization of Venue Sound | Offer customization of the sound for different venues, precisely matching the acoustic requirements of various spaces. |
| OEM | We empower the entire process from product design to manufacturing to meet diverse cooperation needs. |
