Engineering Information
| Drivers | LF:1×18″ Voice-coil:4.5″ |
| Frequency Response(+/-10dB) |
38-150Hz |
| Dispersion(-6dB) | None |
| Sensitivity(1m/1W) | 97 dB |
| maximum SPL | 124dB continuous/130dB peak |
| Nominallmpedance | 8 Ohm |
| Rated Power | 600W AES 2400W peak |
| Recommended AMP | 1200W/8 Ohms |
| Crossover Frequency | ≤120Hz |
| Connectors | 2 x Speakon NL4MP |
| Dimensions(HxWxD) |
690mm×561mm×595mm |
| Packing Dimensions(H×W×D) | 775x694x660mm |
| Net Weight（KG） | 41 |
| Gross Weight (KG) | 49.8 |
Construction
| Physical | Rectangle |
| Enclosure Material | Birch plywood |
| Enclosure shell Material | Molded steel hexagonal mesh with black waterproof sponge added inside |
| Finish | Purple eco-friendly water-based wear-resistant paint coating |
| Handing Position | Professional suspension system |
| Pole Mount | / |
| Caster | / |
Function Application
| Applications | Auditorium, conference room, music bar, KTV room, etc. |

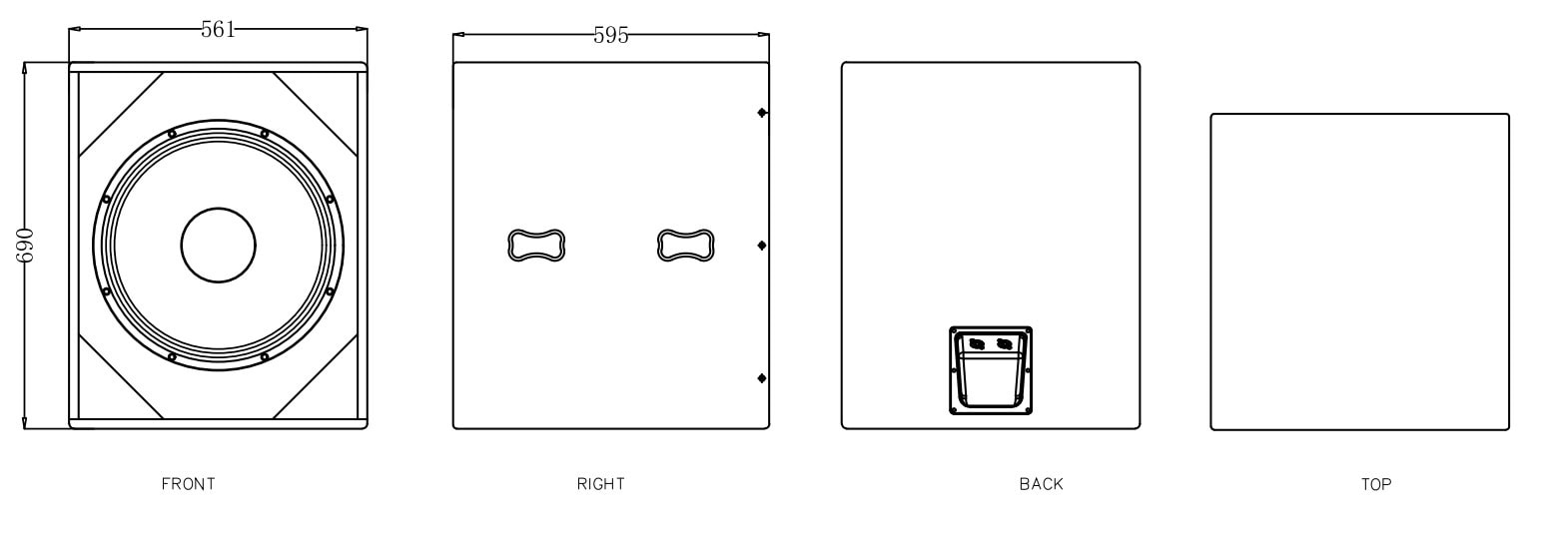

Construction Drawing
Customization
| Color Customization | We support color customization, creating an exclusive visual style according to the user’s venue or personal preferences. |
| Appearance Materials Customization | Through personalized customization of appearance materials, a unique visual style can be created. |
| Customization of Venue Sound | Offer customization of the sound for different venues, precisely matching the acoustic requirements of various spaces. |
| OEM | We empower the entire process from product design to manufacturing to meet diverse cooperation needs. |
