Engineering Information
| Drivers | LF:2×18″ Voice-coil:4″ |
| Frequency Response(+/-10dB) | 35-150Hz |
| Dispersion(-6dB) | |
| Sensitivity(1m/1W) | 96dB |
| maximum SPL | 129dB continuous/135dB peak |
| Nominallmpedance | 2×8 Ohm |
| Rated Power | 2x2000W AES 2x8000W peak |
| Recommended AMP | 3000W/8 Ohms |
| Crossover Frequency | ≤150Hz |
| Connectors | 2 x Speakon NL4MP |
| Dimensions(HxWxD) | 580mm×1220mm×830mm |
| Packing Dimensions(H×W×D) | 1305mm×929mm×679mm |
| Net Weight（KG） | 95.4 |
| Gross Weight (KG) | 105 |
Construction
| Physical | Rectangle |
| Enclosure Material | Birch plywood |
| Enclosure shell Material | Molded steel hexagonal mesh with black sponge inside |
| Finish | Black Polyurea Paint |
| Handing Position | 16pcs M10 screw lifting hole positions |
| Pole Mount | |
| Caster | Installation holes with casters |
Function Application
| Applications | Auditorium, conference room, music bar, KTV room, etc. |

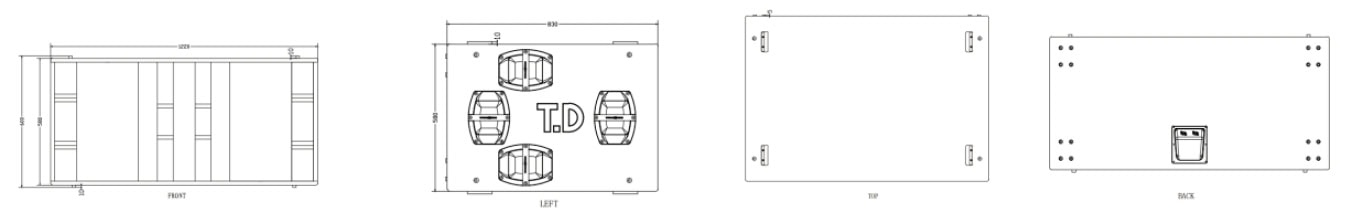

Construction Drawing
Customization
| Color Customization | We support color customization, creating an exclusive visual style according to the user’s venue or personal preferences. |
| Appearance Materials Customization | Through personalized customization of appearance materials, a unique visual style can be created. |
| Customization of Venue Sound | Offer customization of the sound for different venues, precisely matching the acoustic requirements of various spaces. |
| OEM | We empower the entire process from product design to manufacturing to meet diverse cooperation needs. |
