Engineering Information
| Drivers | LF:2×18″ Voice-coil:4″ |
| Frequency Response(+/-10dB) | 33-150Hz |
| Dispersion(-6dB) | |
| Sensitivity(1m/1W) | 101dB |
| maximum SPL | 134dB continuous/140dB peak |
| Nominallmpedance | 4 Ohm |
| Rated Power | 2400W AES 9600W peak |
| Recommended AMP | 5000W/4 Ohms |
| Crossover Frequency | ≤150Hz |
| Connectors | 2×Speakon NL4MP |
| Dimensions(HxWxD) | 561mm×1066mm×780mm |
| Packing Dimensions(H×W×D) | 1167x879x656mm |
| Net Weight（KG） | 85.8 |
| Gross Weight (KG) | 96.8 |
Construction
| Physical | Rectangle |
| Enclosure Material | Birch plywood |
| Enclosure shell Material | Molded steel hexagonal mesh with black sponge inside |
| Finish | Purple environmentally friendly water-based wear-resistant paint coating (color can be customized according to customer requirements) |
| Handing Position | / |
| Pole Mount | / |
| Caster | / |
Function Application
| Applications | Auditorium, conference room, music bar, KTV room, etc. |

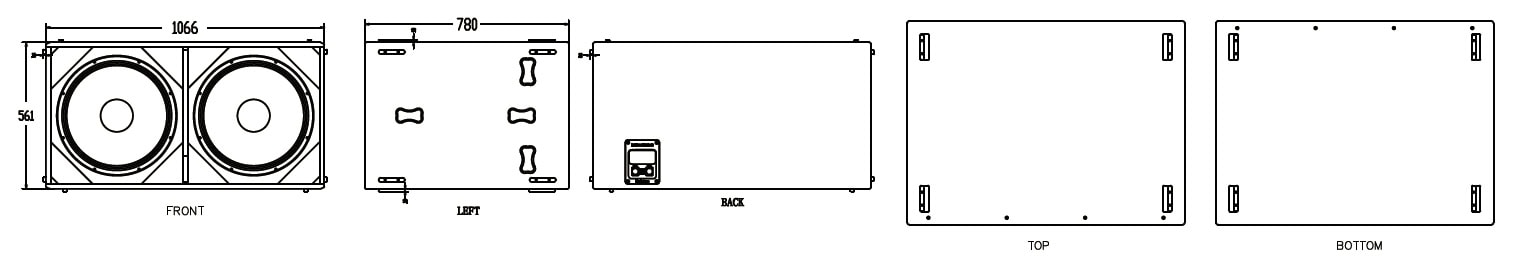

Construction Drawing
Customization
| Color Customization | We support color customization, creating an exclusive visual style according to the user’s venue or personal preferences. |
| Appearance Materials Customization | Through personalized customization of appearance materials, a unique visual style can be created. |
| Customization of Venue Sound | Offer customization of the sound for different venues, precisely matching the acoustic requirements of various spaces. |
| OEM | We empower the entire process from product design to manufacturing to meet diverse cooperation needs. |
