Engineering Information
| Drivers | LF:1×15″ Voice-coil:4″ |
| Frequency Response(+/-10dB) | 40-150Hz |
| Dispersion(-6dB) | |
| Sensitivity(1m/1W) | 94.5dB |
| maximum SPL | 122dB continuous/128dB peak |
| Nominallmpedance | 8 Ohm |
| Rated Power | 600W AES 2400W peak |
| Recommended AMP | 1200W/8 Ohms |
| Crossover Frequency | 100Hz |
| Connectors | AC220V power input |
| Dimensions(HxWxD) | 470mm×568mm×590mm |
| Packing Dimensions(H×W×D) | 700mm×1025mm×660mm (Air cargo container allocation) |
| Net Weight（KG） | 39.5 |
| Gross Weight (KG) | Aviation box and accessories: 87.4 |
Construction
| Physical | Rectangle |
| Enclosure Material | Birch plywood |
| Enclosure shell Material | Molded steel hexagonal mesh with black sponge inside |
| Finish | Black Polyurea Paint |
| Handing Position | |
| Pole Mount | Upper apex |
| Caster |
Function Application
| Applications | Auditorium, conference room, music bar, KTV room, etc. |

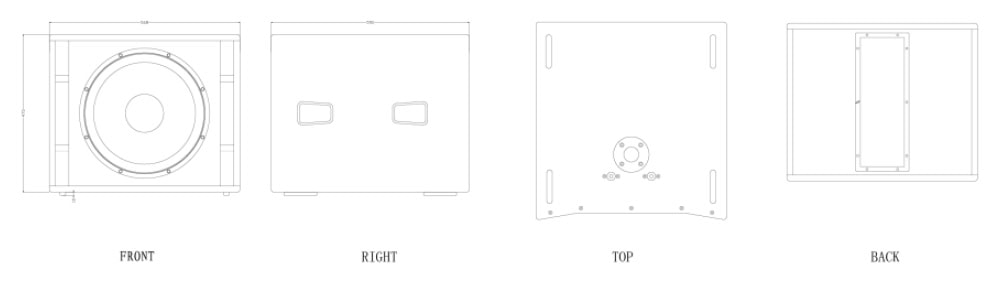

Construction Drawing
Customization
| Color Customization | We support color customization, creating an exclusive visual style according to the user’s venue or personal preferences. |
| Appearance Materials Customization | Through personalized customization of appearance materials, a unique visual style can be created. |
| Customization of Venue Sound | Offer customization of the sound for different venues, precisely matching the acoustic requirements of various spaces. |
| OEM | We empower the entire process from product design to manufacturing to meet diverse cooperation needs. |
